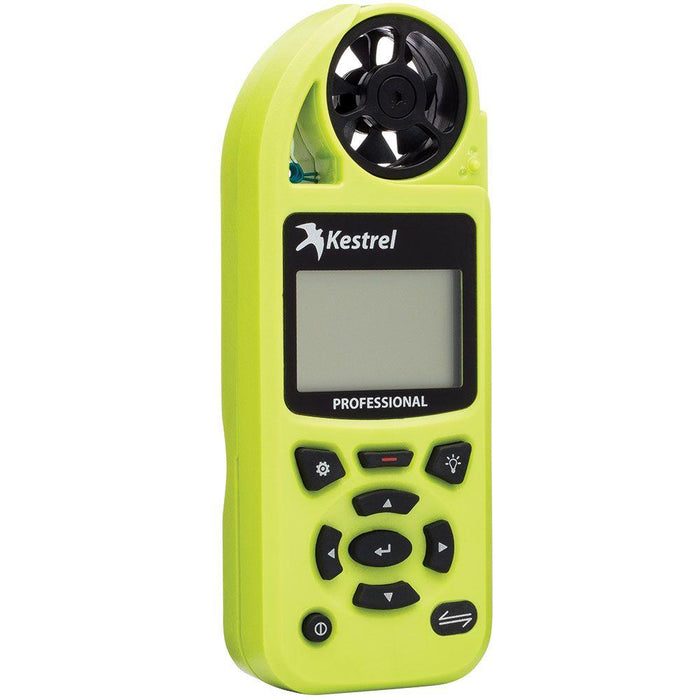

Whether you're pouring concrete, balancing HVAC systems, or spraying crops, take the calculations and guess-work out of your job with the Kestrel 5200
The Kestrel 5200 offers advanced calculators and readings that are unique in the portable meter market and are designed to make your job easier
The Kestrel 5200 offers advanced calculators and readings that are unique in the portable meter market and are designed to make your job easier. In addition to measuring current environmental conditions, the Kestrel 5200 tracks and logs over 10,000 sets of time-stamped data. Your data log can be transferred to a mobile device wirelessly with the LiNK wireless communication option and Kestrel LiNK app, or to a PC/MAC with either the accessory Kestrel LiNK Dongle or waterproof USB Data Transfer Cable (available separately).
Construction

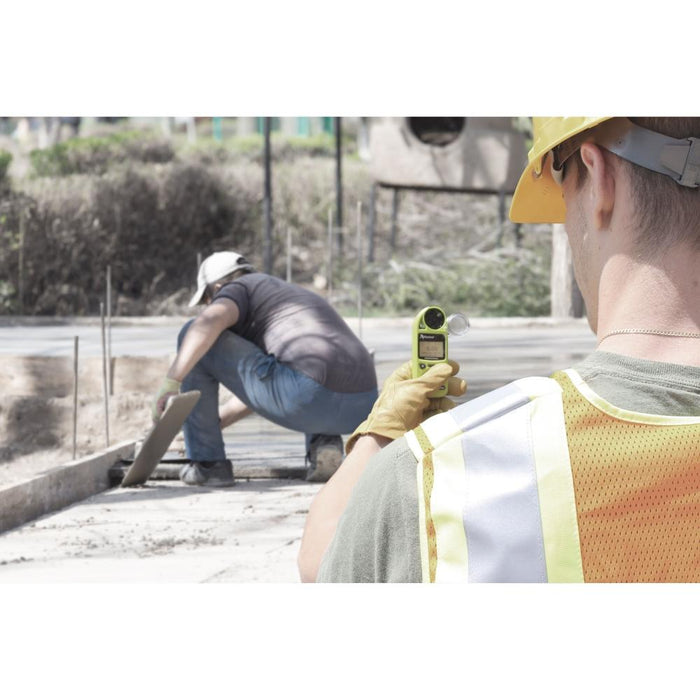

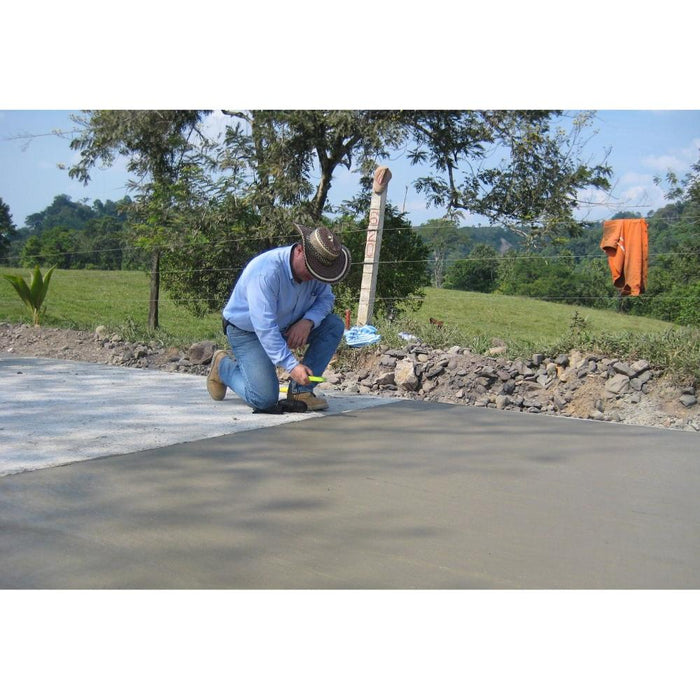

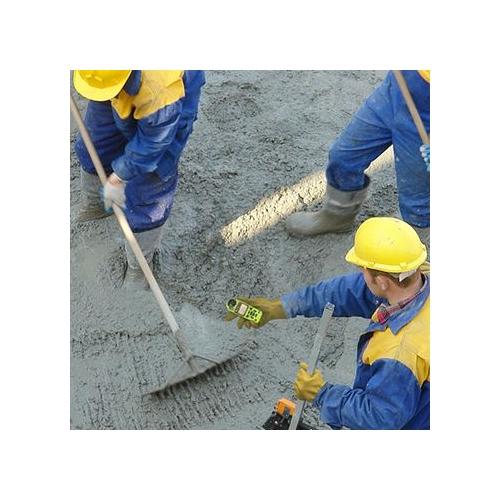

The Kestrel 5200 has the American Concrete Institute Evaporation Rate nomograph built in, and displays the Evaporation Rate right on screen with no calculation or error-prone interpolation. With that information in hand, decisions about additives to the mix or curing adjustments can be made, prevent costly plastic shrinkage cracks of the slab. Plus, the Kestrel 5200 allows you to monitor wind-loading on booms and cranes, and even track the heat index on your work site to keep your workers safe.
HVAC

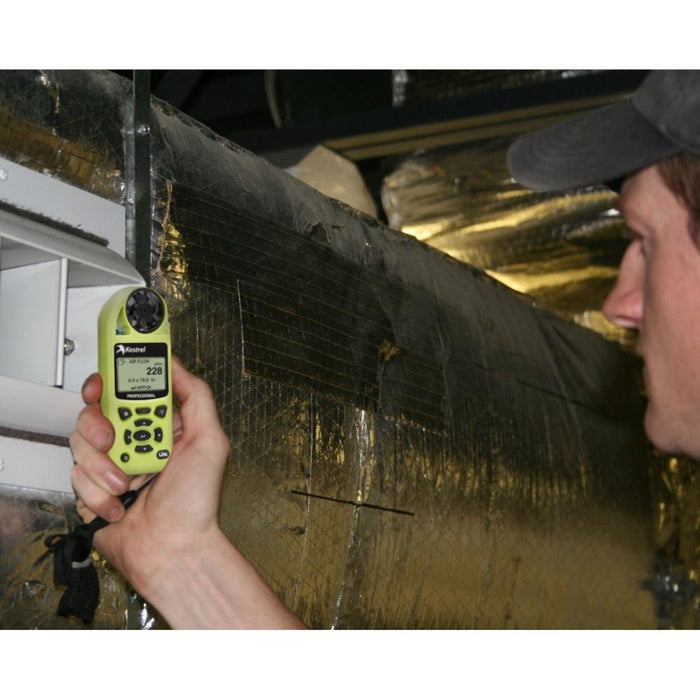

Volume air flow couldn’t get any easier than this. Simply input the duct shape and dimensions and traverse the Kestrel 5200 across the duct. You’ll get instantaneous and average volume air flow without the need for any geometry or calculations. readings that greatly assist in commissioning and performance balancing HVAC systems. While not a replacement for a balometer, the Kestrel 5200 is far less expensive and can save you time and money. The Kestrel 5200 also offers every commonly-used measurement of moisture content in air, making life easy to determine dehumidification needs.
Agriculture
Delta T allows you to accurately assess acceptable spraying conditions to ensure you're within guidelines and help you select the right spray nozzle. The Kestrel 5200 calculates and logs on-site Delta T without any additional user input. Delta-T provides guidance on the evaporation rate of sprayed chemicals. Agriculture professionals can ensure they spray safely, every time.

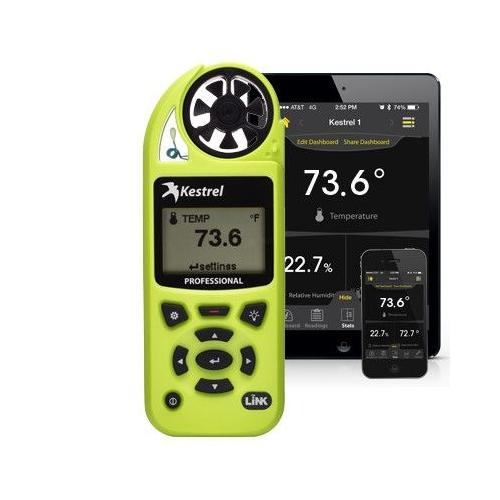

The 5200 with LiNK Bluetooth Connectivity, gives you the option to transfer data wirelessly to an iOS (iPhone, iPad) device or Android smartphone or tablet when within range using the appropriate app (See Below). Also with the 5200 with LiNK Meter, you can transfer data wirelessly to a Windows or Mac computer using the optional Kestrel Bluetooth USB Dongle.
Features
- Measures evaporation rate, air velocity, air flow, air density, relative air density, delta T, and much more. 17 measurements in all!
- Easy to read, high resolution screen (standard and NV backlit).
- Time & date
- Waterproof & floats
- Exterior temperature, humidity & pressure sensors for fast & accurate readings
- Humidity sensor can soon be calibrated in the field via cable or Dongle.
- Min, Max & Average values
- Automatically store measurements, when powered on or off
- Manually store measurements with the press of a button
- Customizable data storage - 10,000 data points
- Graph & recall trends
- Customize screens to display user-selected measurements
- Data charting
- Data upload to iOS & Android phones & tablets
- Data upload to Windows or Mac computers with optional USB Data Cable
- Data upload to Windows & Mac computers via wireless Bluetooth (LiNK Enabled Meters only with the optional Kestrel Dongle)
- Languages: English, French, Spanish, German & Italian
- User-replaceable impeller
- impeller cover allows use of other functions & protecting the impeller
- All instruments and accessories are completely assembled in the USA
Measures
- Air Density
- Air Flow
- Air Velocity / Wind Speed
- Altitude
- Barometric Pressure
- Density Altitude
- Delta T
- Dew Point Temperature
- Evaporation Rate
- Heat Stress Index
- Humidity Ratio (Grains)
- Relative Air Density
- Relative Humidity
- Station Pressure (Absolute Pressure)
- Temperature
- Wet Bulb Temperature (Psychrometric)
- Wind Chill
- CFM

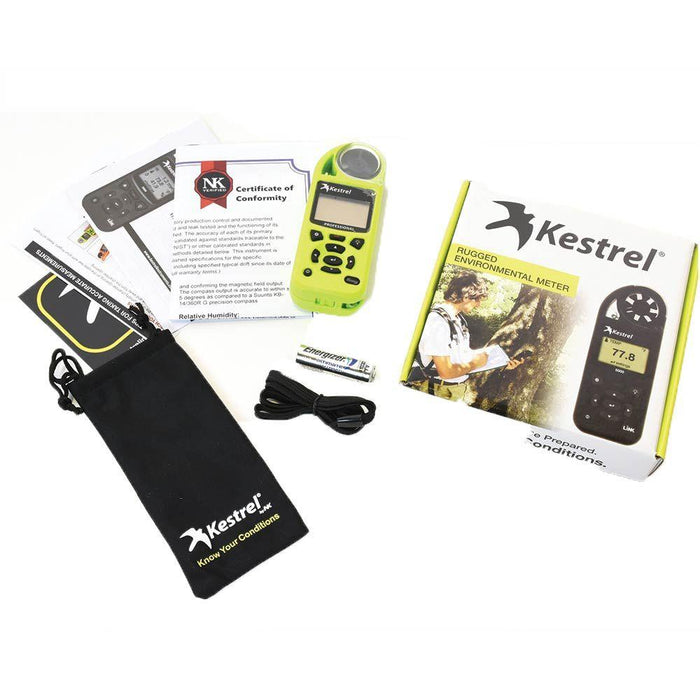

What's in the box?
- Kestrel 5200 Weather Meter
- Neck Lanyard
- AA Lithium Battery (Average Life 400 Hours)
- Protective Drawstring Pouch
- Certificate of Conformity (with complete specifications)
- Instruction Manual
- 5-Year Warranty
Who is using the Kestrel 5200:
- Construction and Concrete Pouring
- Crop Dusting
- Education and Classroom Use
- Facilities Management
- Farming & Agriculture
- HVAC & Air Conditioning Balancing
- Remediation
- Research & Technology
A single-location factory in southeastern Pennsylvania is used to research, design, build, test, calibrate, market, ship and support all Kestrel Weather & Environmental Meters.
